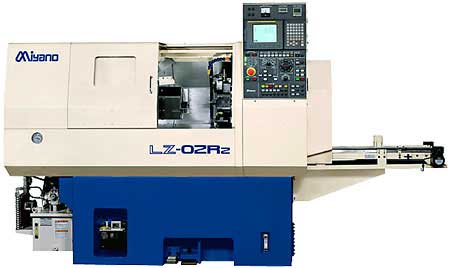

lathe cnc turning center miyano series lz-01r2/02r2

Comments Off on lathe cnc turning center miyano series lz-01r2/02r2 Stock Removal, New Machines, Miyano

TECHNICAL SPECIFICATIONS

Items Model Name LZ-01R2 LZ-02R2
Power chuck size 6″ oil-hydraulic 8″ oil-hydraulic
Max. turning dia./ Power chuck φ70mm φ100mm
Capacity of collet chuck φ50mm φ54mm
Max. turning length 80mm 80mm
Spindle speed range 60~6,000 min-1 40~4,000 min-1
Main spindle motor 7.5/5.5kW 11/7.5kW

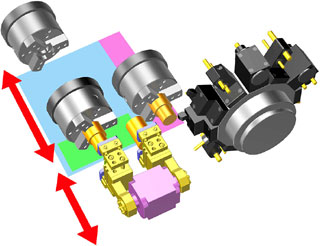

Main spindle slide travel X-axis 245mm 300mm
Z-axis 240mm 240mm
Turret tool stations 12 St. 10 St.
Turret tool shank size Sq. 20mm Sq. 20mm
Turret tool hole diameter φ25mm φ25mm
Max. No. of revolving tool stations 6 5
Max. work size φ70 x 80mm φ100 x 80mm
Max. work weight 0.7kg x 2 1.5kg x 2
Machine weight (machine only) Approx. 3,600kg 3,800kg
