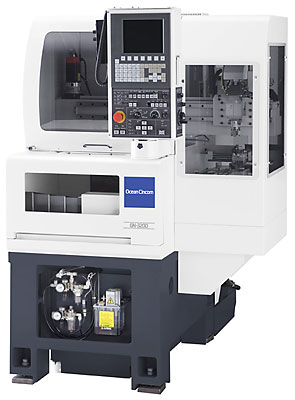

lathe cnc turning center miyano series gn-3200

Comments Off on lathe cnc turning center miyano series gn-3200 Stock Removal, New Machines, Miyano

TECHNICAL SPECIFICATIONS



Items Model Name GN-3200
Power chuck size Pneumatic 3′(4′) precision chuck
Diaphragm chuck size Pneumatic 4′ chuck
Collet chuck max. capacity Stationary type φ35 mm
Draw type φ40 mm
Max. turning length 50 mm
Spindle motor 15min./cont. rate 2.2/ 1.5 kW
Spindle speed range 80~8,000 min-1
Type of turret Horizontal linear turret
Diameter of brill shank Sq. 10mm、Sq. 12mm (Sq. 16mm)
Tool hole size φ20mm
Slide travel X-axis 180mm
Z-axis 200mm
Height of machine 1,600mm
Height of spindle center 875mm
Floor size (machine only) 700mm × 1,460mm
Machine weight
(machine only)
Approx. 1,500 kg
