MID-LEVEL LASER CUTTING SYSTEM FOR FAST, EFFICIENT SHEET METAL PROCESSING

• Efficient processing of parts at optimal speeds and accelerations to suit the part geometry
• Reliable cutting performance at an affordable price-performance ratio
• 1500 x 3000 mm (5′ x 10′) work table area

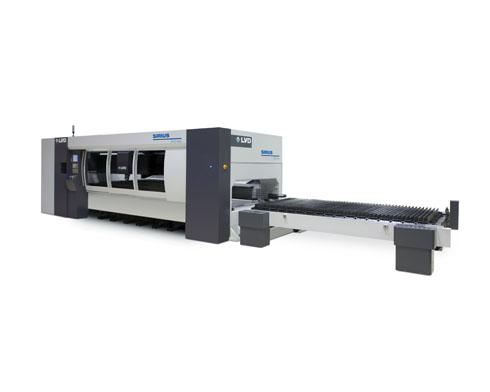

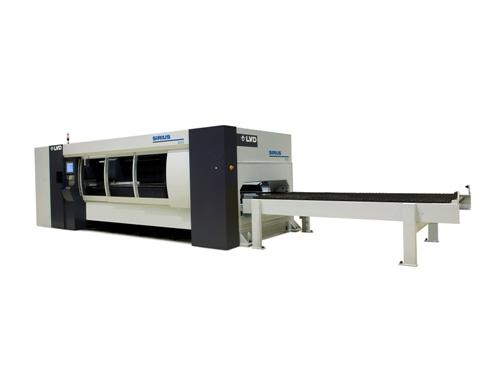

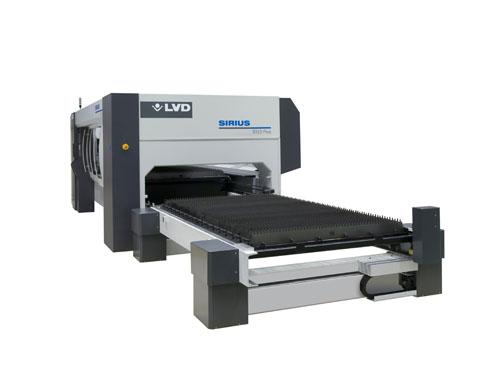

• Incorporates automatic shuttle tables

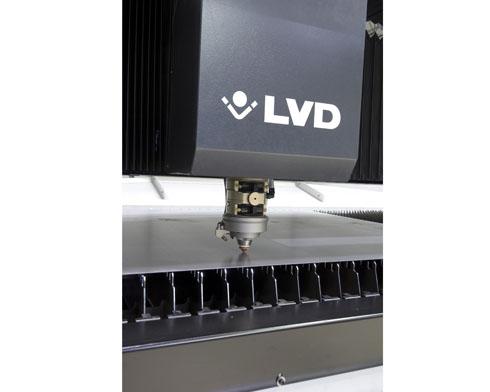

• Quick change lens (5″ and 7.5″)
• Capacitive height sensing maintains a constant distance between the head and the material being processed and adjusts to any undulations in the plate
• Constant beam length system ensures consistent cutting over the entire cutting area
• NC Optimization maximizes machine productivity without operator intervention by automatically determining the cutting head motion based on travel distance
• Fast cut-to-cut workpiece changeover
• High reliability with low maintenance and operation costs

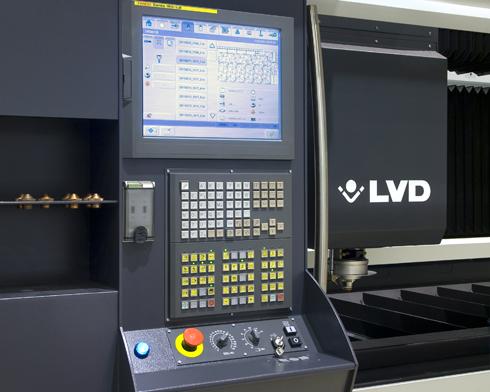

• Integrated LVD – Fanuc machine, control, laser source and motor drive package
• Feature enhanced Sirius Plus model offers affordable automation possibilities

Key Options:

• Loading arm
• Choice of 2.5 or 4 kW laser sources
• CADMAN-L 3D offline software
• Sirius Plus includes additional functionality to allow the addition of automation
• Compact Tower (CT) 4, 6 or 10 pallet automated material handling system (on Sirius 3015 Plus)

Models available:

Sirius 3015

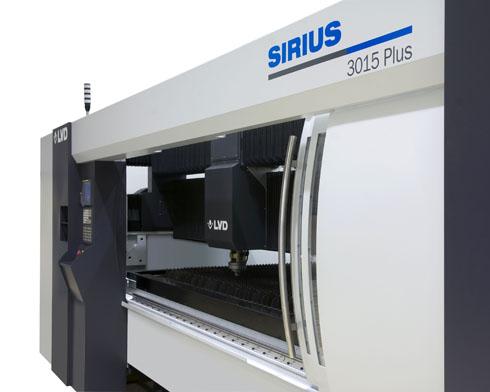

Sirius 3015 Plus
