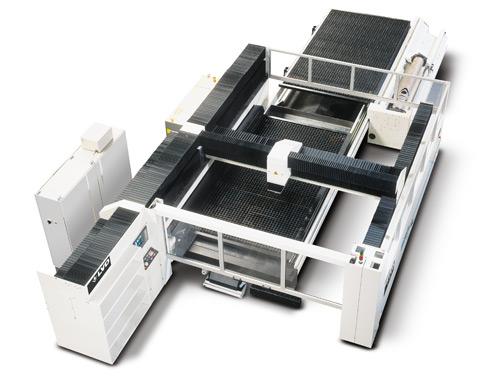

laser cutting lvd series impuls 4020r
FLEXIBLE PROCESSING OF FLAT PLATE, PRE-FORMED PARTS & TUBES
- The only machine of its type to combine rotary and flat plate cutting for the ultimate in processing flexibility
- Up to 4000 x 2000 mm sheet size capability
- Standard configuration provides two shuttle tables and a 280 mm fully programmable Z-axis for use with optional rotary axis or for processing pre-formed parts
- Shuttle table permits loading/unloading of one table while the machine processes flat plate or loading the table while processing pre-formed parts
- Flat sheet cutting can continue during rotary set-up or loading/unloading of the tubes.
- Changeover from flat sheet to rotary can be achieved within seconds

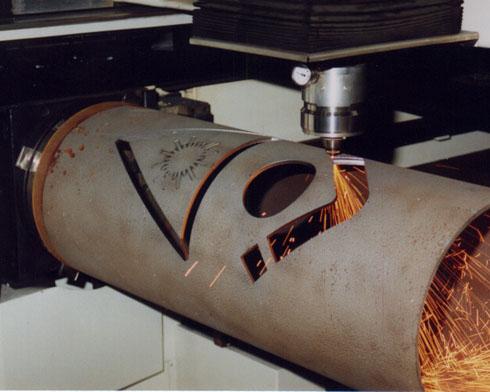

- Processes square or round tubes up to 500 mm and pre-formed parts with a weight of 950 kg

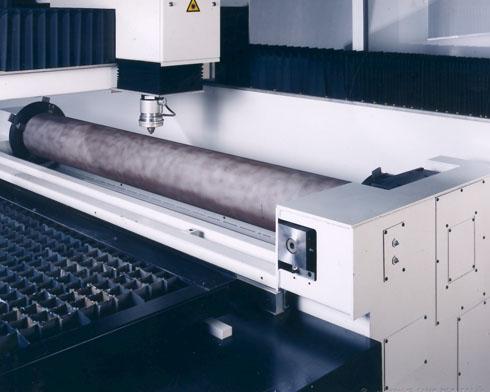

- Rotary carriage is automatically transported into the cutting area facilitating fast changeover
- Integrated LVD – Fanuc machine, control, laser source and motor drive package
Key options:
- Plasma detection feature
- Load system
- NC Focus
- Choice of 4 or 6 kW laser sources
- CADMAN-L 3D offline software
Models available:
Impuls 4020R
