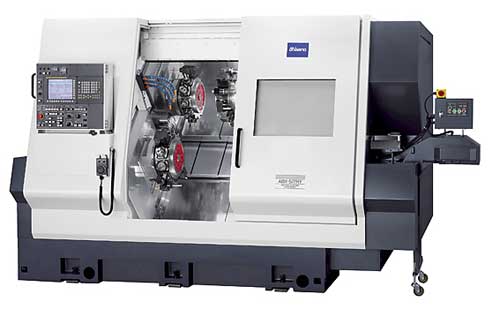

cnc turning center miyano series abx 51 thy/64 hty
TECHNICAL SPECIFICATIONS
| ABX-51THY | ABX-64THY | ||
| Max Machining Diameter of Bar Work | L/R spindle | φ51mm/φ51mm | φ64mm/φ51mm |
| Power Chuck | L/R spindle | 6’/ 6′ hydraulic drive | 6’/ 6′ hydraulic drive |
| Standard Machining Length | 125mm | 125mm | |
| Spindle Motor (30 min. / Cont.) |
L spindle | 15/11 kW | 15/11 kW |
| R spindle | 7.5/5.5 kW | 7.5/5.5 kW | |
| Spindle Speed Range | L/R spindle | 50~5,000 min-1 | 40^4,000 min-1 |
| Type of Turret | 12 St Turret | 12 St Turret | |
| Shank Height of Square Turning Tool | □20mm | □20mm | |
| Diameter of Drill Shank | φ40mm,φ25mm,φ20mm | φ40mm,φ25mm,φ20mm | |
| Slide Travel | X1,X2,X3 axis | 190mm | 190mm |
| Z1,Z3/Z2 axis | 270mm / 550mm | 270mm / 550mm | |
| Y1,Y2,Y3 axis | ±40mm | ±40mm | |
| Max. Number of Revolving Tools | 36 | 36 | |
| Machine Height | 2,180mm | 2,180mm | |
| Floor Space | 3,210 x 1,855 mm | 3,210 x 1,855 mm | |
| Machine Weight | 11,100kg | 11,250kg |
