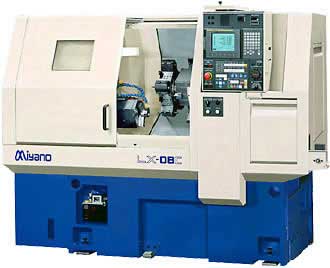

lathe cnc turning center miyano series lx 08 c
TECHNICAL SPECIFICATIONS
| Items | Model Name | LX-08C |
| Power chuck | 8′ oil-hydraulic | |
| Max. turning dia. | 210mm | |
| Max. turning length | 320mm | |
| Main spindle speed range | 40~4,000 min-1 | |
| Main spindle motor 30min./cont. | 11/7.5kW | |
| Turret tool stations | 10St. turret | |
| O.D. tool mount method | Wedge-clamping type direct tool mount |
|
| Tool shank size | Sq. 25 mm | |
| Tool hole diameter | φ40mm | |
| Turret slide travel | X-axis | 175mm |
| Z-axis | 435mm | |
| Tail-stock taper size (Opt.) | MT4 | |
| Quill type tail-stock | Max. thrust force | 3116N(318kgf) |
| Slide type tail-stock | Max. thrust force | 5,488N(560kgf) |
| Floor space (machine only) | 2,035 x 1,690mm | |
| Machine weight (machine only) | Approx. | 4,500kg |
