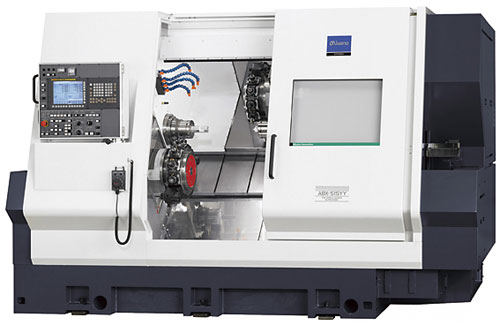

cnc turning center miyano series abx 51 syy/64 syy new 2011
TECHNICAL SPECIFICATIONS
| Items | Model | ABX-51SYY | ABX-64SYY |
| Machining Capacity & Chucking System | |||
| Max. Bar Capacity | L/R spindle | φ51/ 51mm | φ64/ 51mm |
| Collet Chuck | L/R spindle | Stationary | Stationary |
| Power Chuck | L/R spindle | 6’/ 6′ hydraulic drive | 6’/ 6′ hydraulic drive |
| Standard Turning Length | 125 mm | 125 mm | |
| Spindle | |||
| Spindle Nose | L/R spindle | A2-6 / A2-6 | A2-8 / A2-6 |
| Spindle Motor | L Spindle | 15/ 11 kW | 15/ 11 kW |
| (30 min./Cont.) | R Spindle | 7.5/ 5.5 kW | 7.5/ 5.5 kW |
| Spindle Speed Range | L Spindle | 50～5,000 min-1 | 40～4,000 min-1 |
| R Spindle | 50～5,000 min-1 | 50～5,000 min-1 | |
| R Spindle Travel | Zsp axis | 756mm | 756mm |
| R Spindle Rapid Traverse Rate | Zsp axis | 30 m/min | 30 m/min |

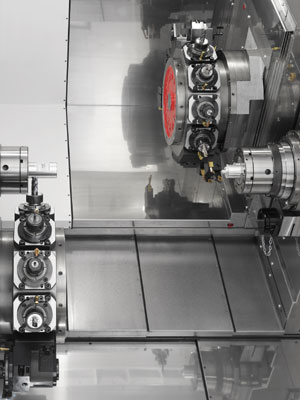

| Turrets (Upper L/R Turrets & Lower Turret) | |||
| Type of Turret | 12Station Turret | 12Station Turret | |
| Shank Height of Square Turning Tool | Sq. 20mm | Sq. 20mm | |
| Diameter of Drill Shank | φ40mm φ20mm φ25mm | φ40mm φ20mm φ25mm | |
| Turret Indexing Methods | AC Servo & Curvic C. | AC Servo & Curvic C. | |
| Slide Travel | X1, X2 axis | 190mm | 190mm |
| Z1/ Z2axis | 550mm/ 721mm | 550mm/ 721mm | |
| Y1, Y2axis | ±40mm | ±40mm | |
| Rapid Traverse Rate | X1, X2 axis | 16 m/min | 16 m/min |
| Z1/ Z2axis | 30/ 20 m/min | 30/ 20 m/min | |
| Y1, Y2axis | 12 m/min | 12 m/min | |
| Revolving Tools (Option) | |||
| Max. Number of Revolving Tools | 24 | 24 | |
| Tool Spindle Speed Range | 60～6,000 min-1 | 60～6,000 min-1 | |
| Tool Spindle Driving Motor | AC Servo 4.5 kW | AC Servo 4.5 kW | |
| Machine Dimensions | |||
| Machine Height | 2,180mm | 2,180mm | |
| Floor Space | 3,210×1,855 mm | 3,210×1,855 mm | |
| Machine Weight | 10,650kg | 10,800kg | |
