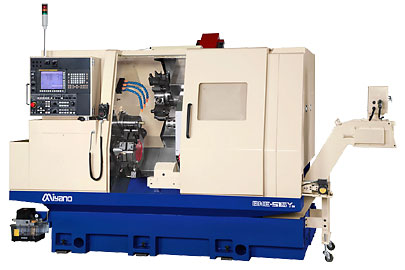

cnc turning center miyano series bne 34 sy5 / 51 sy5
TECHNICAL SPECIFICATIONS
| Items | Model Name | BNE-34SY5 | BNE-51SY5 | |
| Power chuck | L/R spindle | 5″/4″ oil-hydraulic | 6″/4″ oil-hydraulic | |
| Max. bar capacity | L spindle | φ34mm | φ51mm | |
| R spindle | φ34mm | φ41mm | ||
| Max. turning length | Main spindle | 90mm | 90mm | |
| Turret tool stations | Upper turret | 12 .St | 12 .St | |
| Lower turret | 12 .St | 12 .St | ||
| Turret slide travel | Upper turret | X1-axis | 175mm | 175mm |
| Z1-axis | 380mm | 380mm | ||
| Y-axis | ±40mm | ±40mm | ||
| Lower turret | X2-axis | 145mm | 145mm | |
| Z2-axis | 175mm | 175mm | ||
| R spindle travel | 450mm | 450mm | ||
| Tool shank size | U & L turret | Sq. 20mm | Sq. 20mm | |
| Tool hole diameter | U & L turret | 25mm | 25mm | |
| Max. No. of revolving tool stations | Main turret | 12 | 12 | |
| Sub turret | 12 | 12 | ||
| Spindle speed range | L/R spindle | 70~7,000 min-1 | 50~5,000 min-1 | |
| Main spindle motor | L/R spindle | 7.5/5.5kW | 15/5.5kW | |
| Machine weight | Approx. | 7,380kg | 7,400kg | |
