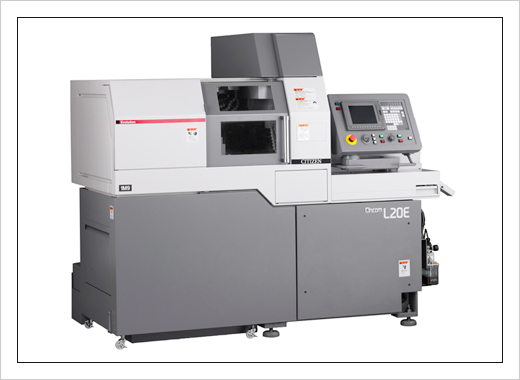

lathe sliding headstock type citizen cnc automatic l20e-ix
TECHNICAL SPECIFICATIONS
| Type | L20E VIII | L20E IX | |
| Maximum machining daimeter | Φ20mm | ||
| Maximum machining length | 200mm/chuck | ||
| Maximum drilling diameter for main spindle | Φ10mm | ||
| Maximum tapping diameter for main spindle (tap,die) | M8 | ||
| Spindle through-hole diameter | Φ24mm | ||
| Main spindle speed | Max.10,000min-1 | ||
| Maximum drilling diameter for gang rotary tool | Φ8mm | ||
| Maximum tapping diameter for gang rotary tool | M6 | ||
| Gang rotary tool spindle speed | Max.5,000min-1 | ||
| Max. chuck diameter of back spindle | Φ20mm | ||
| Max. drilling diameter in back machining process | Φ8mm | ||
| Max. tapping diameter in back machining process | M6 | ||
| Back spindle speed | Max.8,000min-1 | ||
| Back tool post rotary tool | － | Max.5,000min-1 （rating4,000min-1） |
|
| Number of tools to be mounted | Max.32 | ||
| Tool size | Turning tool | □12mm（□13mm） | |
| Rapid feed rate | X1 axis | 32m/min | |
| X2 axis | 32m/min | ||
| Y axis | 32m/min | ||
| Z1 axis | 32m/min | ||
| Z2 axis | 32m/min | ||
| Motors | for spindle drive | 2.2/3.7kW | |
| for tool spindle drive | 1.0kW | ||
| for back spindle drive | 1.1/1.5kW | ||
| for back tool post spindle drive | － | 0.75kW | |
| for cutting coolant oil | 0.4kW | ||
| Input power capacity | 6kVA | ||
| Center height | 1,050mm | ||
| Weight | 2,200kg | ||
