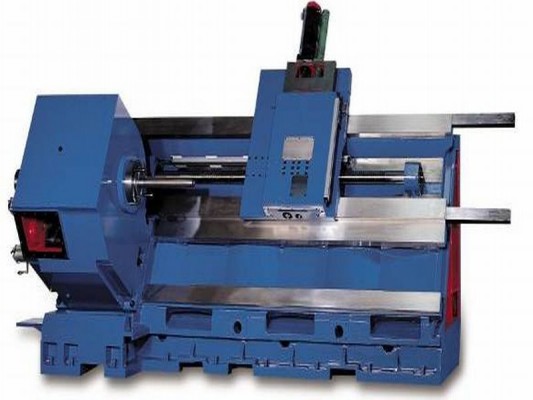

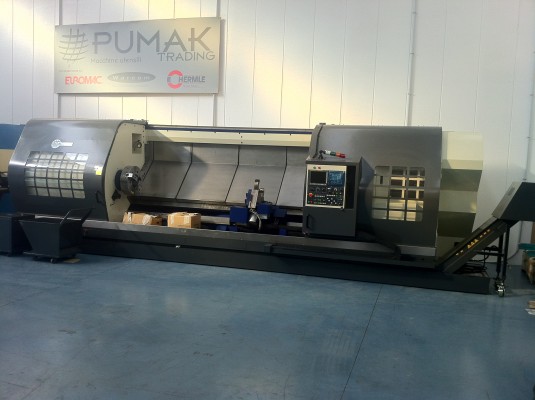

TECHNICAL FEATURES MOD. SS35

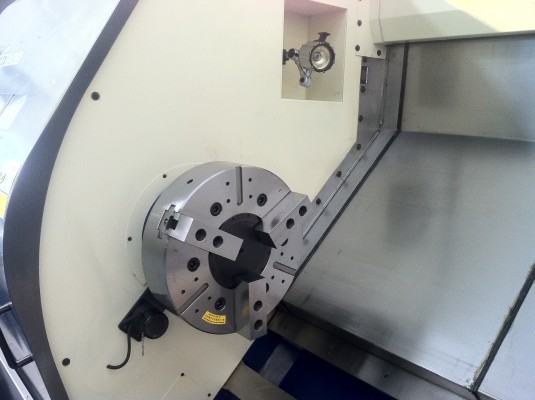

| WORKING AREA | |
| SWING OVER BED | mm. 890MAX |
| TURNING DIAMETER | mm. 890MAX TURNING |
| DIAMETER ON THE CROSS SLIDE | mm. 740 |
| MAX TURNING LENGHT | mm. 3200 |
| CHUCK STANDARD DIAMETER | mm. 500 |
| BED WIDTH | mm 1145 |
| X AXIS SLIDE WIDTH | mm 500 |
| SPINDLE | |
| SPINDLE NOSE | ASA 11″ |
| SPINDLE BEARING INSIDE DIAMETER | mm. 384 |
| SPINDLE BORE | mm. 230 |
| BAR CAPACITY | mm. 150 |
| SPINDLE MOTOR POWER | kW 35/42 |
| MAX TORQUE | Nm. 2500 |
| SPINDLE SPEED | g/min. da 16 a 800 |
| GEAR BOX : | |
| 4 AUTOMATIC STEPS: | 16 -120 RPM
30 – 200 RPM 70 – 420 RPM 150 – 800 RPM |

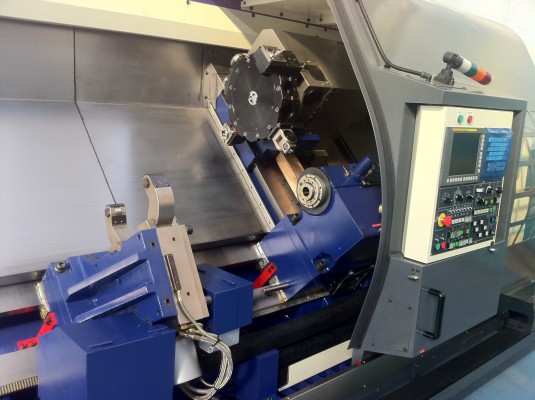

| TURRET TOOL HOLDER | |
| NUMBER OF STATIONS | N° 12 |
| POLIGONAL TOOL TURRET DISC | BMT |
| DIMENSIONS OF TOOLS AND BORING BARS | 32X32 / 60 mm |
| NUMBER OF LIVE TOOLS STATIONS | 12 |
| LIVE TOOLS MOTOR POWER | Kw 7,5 |
| LIVE TOOLS SPEED | 3.000 |
| AXIS X/Z/C | |
| BALLSCREWS X-Z DIAMETER AND PITCH | mm. 45×10/63×10 |
| BALLSCREWS X-Z PRECISION CLASS | ISO 3 |
| X-Z RAPID TRAVEL | m/min. 8 / 10 |
| X AXIS STROKE | mm. 430 |
| Z AXIS STROKE | mm. 3250 |
| X-Z AXIS MEASUREMENT SYSTEM LINEAR SCALES | |
| X-Z AXIS MOTOR TORQUE | Nm. 18/30 |
| C AXIS | CONTINUOS WITH SPECIFIC SEPARATE MOTOR |
| TOOL DISC | BMT 75 |
| LIVE TAILSTOCK WITH BEARINGS | |
| QUILL DIAMETER | mm. 160 |
| QUILL MAX STROKE | mm. 200 |
| QUILL NOSE | MT 5 |
| MAX THRUST | Kg. 1800 |

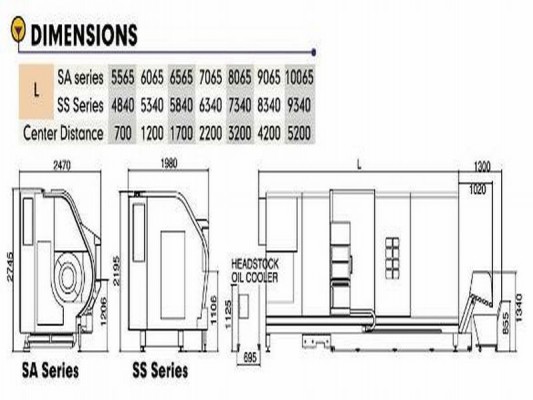

| OVERALL DIMENSIONS | MM L 5840 x P 1980 x H 2195 |
| MACHINE WEIGHT | Kg. 18000 |
| TOTAL POWER ISTALLED | KVA 80 |
| CNC FANUC 31iT | |
| ELECTRICAL CABINET WITH AIR CONDITIONING SYSTEM | |
| MAIN SPINDLE WITH OIL LUBRICATION AND CHILLER 18.000 BTU SYSTEM | |
| MOVABLE HYDRAULIC STEADY REST MAX DIAMETER | 360 MM |
| MOVABLE TAILE STOCK | |
| CHUCK DIAMETER | 500 MM |
| MANUAL TOOL SETTER | |
| CE NORM CONFORM |
