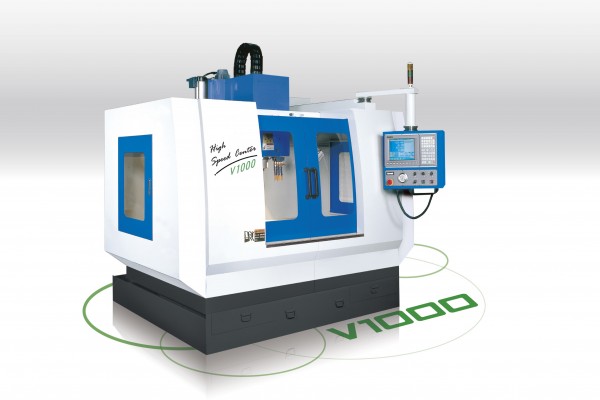

processing center iron center machine series a-v1100 cnc conversational advanced
|
TECHNICAL DATE:
|
||||
| Chuck table | ||||
| Dimensions | 1.260 x 560 | |||
| Cave at “T” N ° – wide – Step | 5 – 18 – 100 | |||
| Load capacity | 1.100 kg | |||
| RACING | ||||
| X axis (longitudinal) | mm. 1,020 | |||
| Y axis (transverse) | mm. 620 | |||
| Z-axis travel (vertical) | mm. 610 | |||
| LINE SPINDLE | ||||
| Standard spindle nose | BT 40 | |||
| Speed of rotation | rpm / 1′ 12.000 | |||
| Distance spindle nose – working table | mm. 160 -770 | |||
| SPEED PROGRESS | ||||
| Rapid feeds axes X and Y | mm. /1′ 24.000 | |||
| Z-axis rapid feeds | mm. /1′ 16.000 | |||
| Working feeds | mm. / 1′ 1÷ 10.000 | |||
| TOOL STORAGE | ||||
| Tool position stock (option) | n. 24 | |||
| Warehouse management system | ||||
| Random two-way | ||||
| Tool change time (chip – chip) | ||||
| Sec. | 3.5 / 5.5 | |||
| Length max. | mm 250 | |||
| Weight max. Tool | 7 Kg | |||
| POWER MOTORS | ||||
| Spindle motor | 15 – 18.5 KW | |||
| Engines X / Y / Z | KW 1.8 / 3.0 / 4.2 | |||
| Pump motor lubrication of the guides | W 25 | |||
| Twist axes X, Y, and Z | Nm 12/12/1930 | |||
| DATA FOR INSTALLATION | ||||
| Space occupied the ground | mm. 3350 x 2.700 | |||
| Machine height | mm. 2.900 | |||
| Three phase power supply | 220/380V – 50Hz | |||
| Machine weight | 6200 kg | |||
