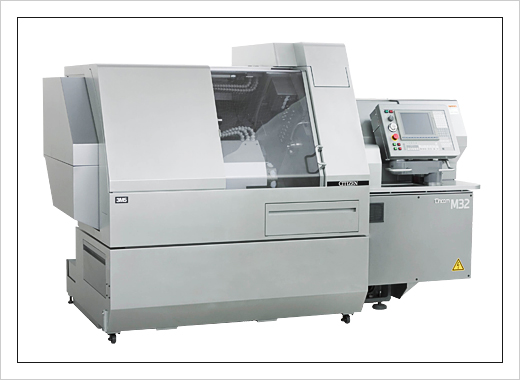

tornio fantina mobile citizen cnc automatic cincom m32
Caratteristiche Tecniche
| Item | M20III | M20V | M32III | M32V | |
| Maximum machining diameter | Φ20mm | Φ32mm | |||
| Maximum machining area | 320mm | ||||
| Maximum drilling diameter for main spindle | Φ10mm | Φ12mm | |||
| Maximum tapping diameter for main spindle (tap,die) | M8 | M10 | |||
| Spindle through-hole diameter | Φ24mm | Φ36mm | |||
| Spindle speed | 10,000min-1 | 8,000min-1 | |||
| Maximum drilling diameter for rotary tool | Φ7mm | ||||
| Maximum tapping diameter for rotary tool | M6 | ||||
| Spindle speed of the gang rotary tool | 5,000min-1 | ||||
| Max. chuck diameter of back spindle | Φ20mm | Φ32mm | |||
| Max. protrusion length of the back spindle workpiece | 145mm | ||||
| Max. drilling diameter in back machining process | Φ8mm | Φ10mm | |||
| Max. tapping diameter in back machining process | M6 | M8 | |||
| Back spindle speed | 8,000min-1 | 7,000min-1 | |||
| Number of tools to be mounted | 22＋α | ||||
| Tool size | Turning tool | □16mm | |||
| Rapid feed rate | X1 axis | 20m/min | |||
| Y1 axis | 20m/min | ||||
| Z1 axis | 20m/min | ||||
| X2 axis | 20m/min | 15.5m/min | 20m/min | 15.5m/min | |
| Y2 axis | – | 8m/min | – | 8m/min | |
| Z2 axis | 20m/min | ||||
| X3 axis | 20m/min | ||||
| Z3 axis | 20m/min | ||||
| Motors | For spindle drive | 2.2/3.7kW | 3.7/5.5kW | ||
| For tool spindle drive (gang tool post) | 0.75kW | ||||
| For tool spindle drive (turret) | 0.75/1.5kW | 1.5/2.2kW | |||
| For back spindle drive | 0.75/1.5kW | 1.5/3.7kW | |||
| For cutting coolant oil | 0.4kW | ||||
| Input power capacity | 8kVA | ||||
| Center height | 1,100mm | 1,132mm | 1,100mm | 1,132mm | |
| Weight | 2,950kg | 3,100kg | 2,950kg | 3,100k | |
